Le texte qui accompagne la photo sur le site (Matrixsynth) où je l'ai trouvée est ceclui-ci :
"The ps-3 came equipped with nine timbres. most of which are the same sound through a different combination of VCF and VCA envelopes. there are then two octaves of the main oscillator that are being fed to the timbre filters; 4' and 8'. since i had freed up the VCA and VCF to manual control via the ADSR's, there was no longer any need for the nine timbre selections. instead i chose the three timbre filters that represented HP, BP, and LP best, and designated the three filters to each of the 4' and 8' voices. each timbre of the two voices can be completely attenuated to create infinite voice combinations. see the schematic for more..."

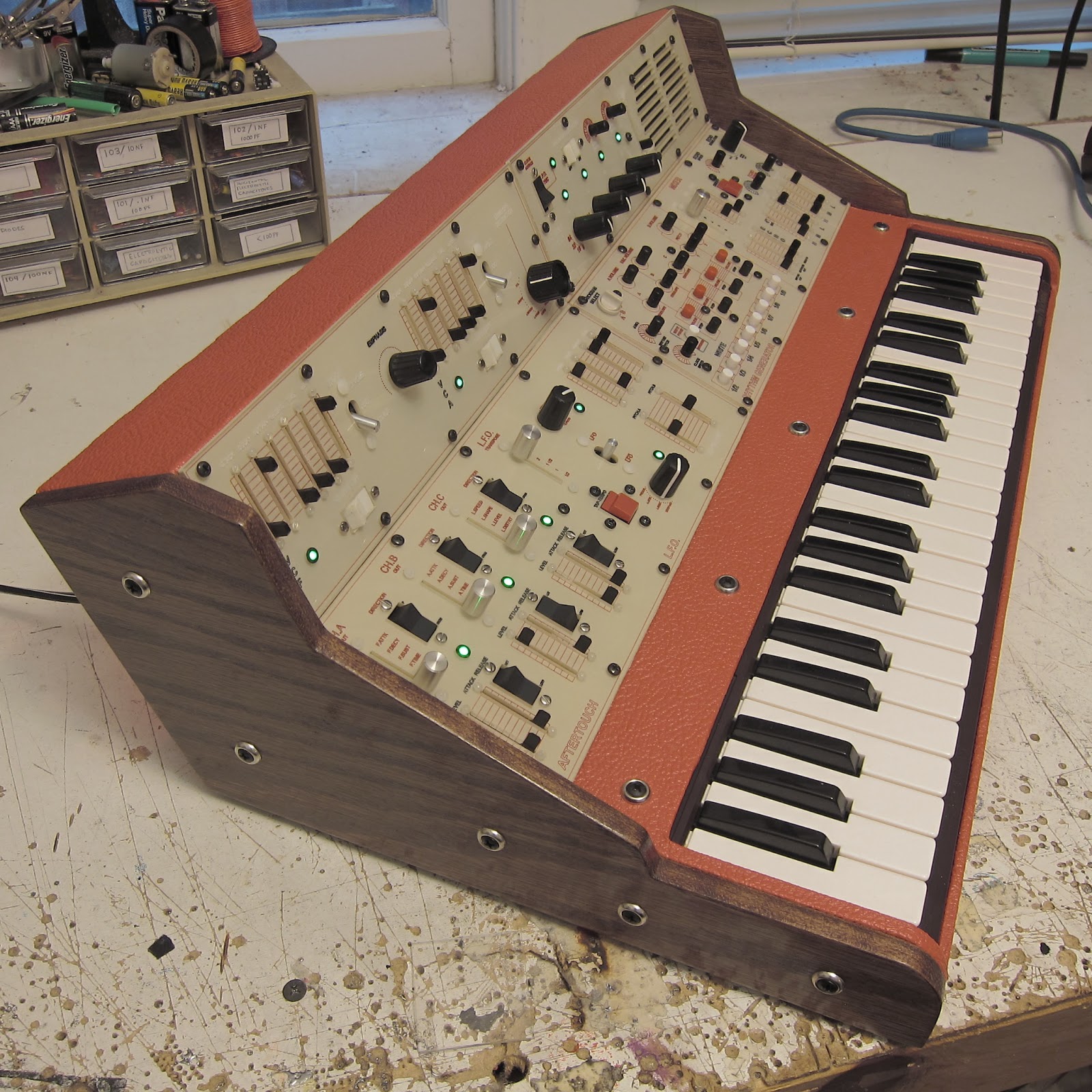

Some of you might recognize this one from the videos posted back in 2012 here (voir les vidéos ci-dessous). This is pretty amazing. Just look at the image above and the end result below. That is pretty spectacular in my book.
http://www.youtube.com/watch?feature=pl ... _ucbw9EGqM[/video]
http://www.youtube.com/watch?feature=pl ... mMYz_PPfoc[/video]
